UWAN.c File Reference

#include "main.h"
#include "UWAN.h"
#include "ErrorModel.h"

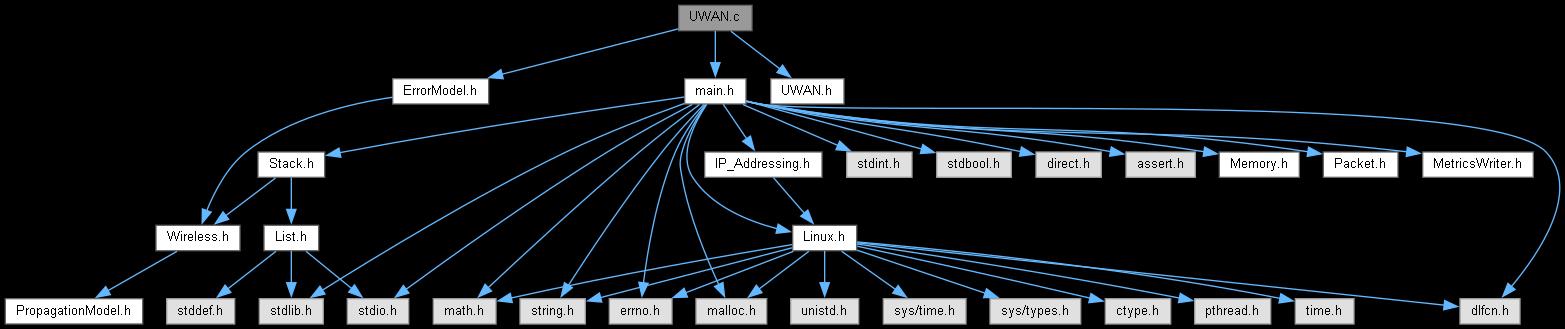

Include dependency graph for UWAN.c:

Go to the source code of this file.

Functions
int	fn_NetSim_UWAN_Init ()
int	fn_NetSim_UWAN_Run ()
int	fn_NetSim_UWAN_Finish ()
char *	fn_NetSim_UWAN_Trace (NETSIM_ID nSubEvent)
int	fn_NetSim_UWAN_Configure (void **var)
int	fn_NetSim_UWAN_FreePacket (NetSim_PACKET *pstruPacket)
int	fn_NetSim_UWAN_CopyPacket (NetSim_PACKET *pstruDestPacket, NetSim_PACKET *pstruSrcPacket)
int	fn_NetSim_UWAN_Metrics (PMETRICSWRITER metricsWriter)
char *	fn_NetSim_UWAN_ConfigPacketTrace ()
char *	fn_NetSim_UWAN_WritePacketTrace (NetSim_PACKET *pstruPacket, char **ppszTrace)
double	UWAN_calculate_propagation_delay (NETSIM_ID tx, NETSIM_ID txi, NETSIM_ID rx, NETSIM_ID rxi, PPROPAGATION_INFO info)
static double	UWAN_getConstellationSize (PHY_MODULATION modulation)
static double	UWAN_CalculateNoise (PPROPAGATION_INFO info, NETSIM_ID tx, NETSIM_ID rx)
static double	UWAN_CalculateSNR (double power, double noise)
double	UWAN_Calculate_ber (NETSIM_ID tx, NETSIM_ID rx, PPROPAGATION_INFO info, double rxPower, PHY_MODULATION modulation, double dataRate, double bandwidth)

Function Documentation

fn_NetSim_UWAN_ConfigPacketTrace()

char * fn_NetSim_UWAN_ConfigPacketTrace

(

)

This function will return the string to write packet trace heading.

Definition at line 101 of file UWAN.c.

fn_NetSim_UWAN_Configure()

int fn_NetSim_UWAN_Configure

(

void **

var

)

This function is called by NetworkStack.dll, while configuring the device for UWAN protocol.

Definition at line 60 of file UWAN.c.

fn_NetSim_UWAN_CopyPacket()

int fn_NetSim_UWAN_CopyPacket	(	NetSim_PACKET *	pstruDestPacket,
		NetSim_PACKET *	pstruSrcPacket
	)

This function is called by NetworkStack.dll, to copy the UWAN protocol details from source packet to destination.

Definition at line 81 of file UWAN.c.

fn_NetSim_UWAN_Finish()

int fn_NetSim_UWAN_Finish

(

)

This function is called by NetworkStack.dll, once simulation end to free the allocated memory for the network.

Definition at line 40 of file UWAN.c.

fn_NetSim_UWAN_FreePacket()

int fn_NetSim_UWAN_FreePacket

(

NetSim_PACKET *

pstruPacket

)

This function is called by NetworkStack.dll, to free the UWAN protocol data.

Definition at line 70 of file UWAN.c.

fn_NetSim_UWAN_Init()

int fn_NetSim_UWAN_Init

(

)

UWAN Init function initializes the UWAN parameters.

Definition at line 21 of file UWAN.c.

fn_NetSim_UWAN_Metrics()

int fn_NetSim_UWAN_Metrics

(

PMETRICSWRITER

metricsWriter

)

This function write the Metrics

Definition at line 92 of file UWAN.c.

fn_NetSim_UWAN_Run()

int fn_NetSim_UWAN_Run

(

)

This function is called by NetworkStack.dll, whenever the event gets triggered inside the NetworkStack.dll for the UWAN protocol

Definition at line 31 of file UWAN.c.

fn_NetSim_UWAN_Trace()

char * fn_NetSim_UWAN_Trace

(

NETSIM_ID

nSubEvent

)

This function is called by NetworkStack.dll, while writing the event trace to get the sub event as a string.

Definition at line 50 of file UWAN.c.

fn_NetSim_UWAN_WritePacketTrace()

char * fn_NetSim_UWAN_WritePacketTrace	(	NetSim_PACKET *	pstruPacket,
		char **	ppszTrace
	)

This function will return the string to write packet trace.

Definition at line 109 of file UWAN.c.

UWAN_Calculate_ber()

double UWAN_Calculate_ber	(	NETSIM_ID	tx,
		NETSIM_ID	rx,
		PPROPAGATION_INFO	info,
		double	rxPower,
		PHY_MODULATION	modulation,
		double	dataRate,
		double	bandwidth
	)

Definition at line 184 of file UWAN.c.

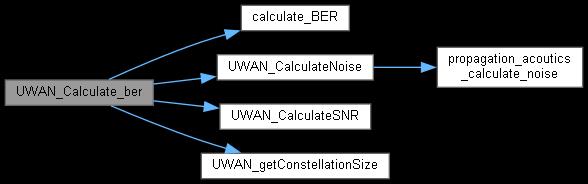

Here is the call graph for this function:

Here is the caller graph for this function:

UWAN_calculate_propagation_delay()

double UWAN_calculate_propagation_delay	(	NETSIM_ID	tx,
		NETSIM_ID	txi,
		NETSIM_ID	rx,
		NETSIM_ID	rxi,
		PPROPAGATION_INFO	info
	)

Definition at line 117 of file UWAN.c.

Here is the call graph for this function:

Here is the caller graph for this function:

UWAN_CalculateNoise()

static double UWAN_CalculateNoise ( PPROPAGATION_INFO  info, NETSIM_ID  tx, NETSIM_ID  rx  )

static

Definition at line 170 of file UWAN.c.

Here is the call graph for this function:

Here is the caller graph for this function:

UWAN_CalculateSNR()

static double UWAN_CalculateSNR ( double  power, double  noise  )

static

Definition at line 179 of file UWAN.c.

Here is the caller graph for this function:

UWAN_getConstellationSize()

static double UWAN_getConstellationSize ( PHY_MODULATION  modulation )

static

Definition at line 147 of file UWAN.c.

Here is the caller graph for this function:
