GSM.h File Reference

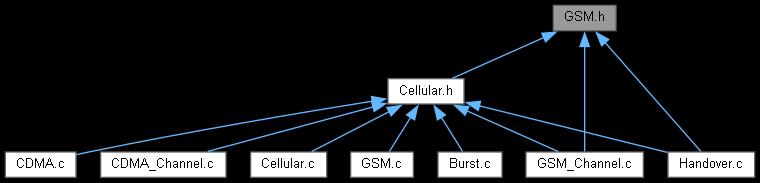

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_MSC_GSM

Macros
#define	GSM_PAYLOAD   (57*2)/8
#define	GSM_OVERHEAD   (3+1+26+1+3+8.25)/8
#define	GSM_CHANNEL_LENGTH   577
#define	GSM_CARRIER_LENGTH   577*8

Typedefs
typedef struct stru_MSC_GSM	MSC_GSM

Functions
double	fn_NetSim_GSM_GetPacketStartTime (double dCurrentTime, unsigned int nTimeSlot)

Macro Definition Documentation

GSM_CARRIER_LENGTH

#define GSM_CARRIER_LENGTH   577*8

Definition at line 20 of file GSM.h.

GSM_CHANNEL_LENGTH

#define GSM_CHANNEL_LENGTH   577

Definition at line 19 of file GSM.h.

GSM_OVERHEAD

#define GSM_OVERHEAD   (3+1+26+1+3+8.25)/8

Definition at line 18 of file GSM.h.

GSM_PAYLOAD

#define GSM_PAYLOAD   (57*2)/8

Definition at line 17 of file GSM.h.

Typedef Documentation

MSC_GSM

typedef struct stru_MSC_GSM MSC_GSM

Definition at line 21 of file GSM.h.

Function Documentation

fn_NetSim_GSM_GetPacketStartTime()

double fn_NetSim_GSM_GetPacketStartTime	(	double	dCurrentTime,
		unsigned int	nTimeSlot
	)

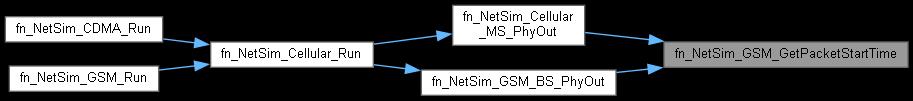

Here is the caller graph for this function:
