Introduction

A network simulator mimics the behaviour of networks but cannot connect to real networks. NetSim Emulator enables users to connect NetSim simulator to real hardware and interact with live applications.

  • NetSim emulator is an IP based, data plane, flow-through emulator. This means:

  • It can interact with IP based devices.

  • It can emulate data plane functionality and not control plane functionality.

  • The source and destination for traffic should be external. A virtual device within NetSim cannot be a source or sink for traffic.

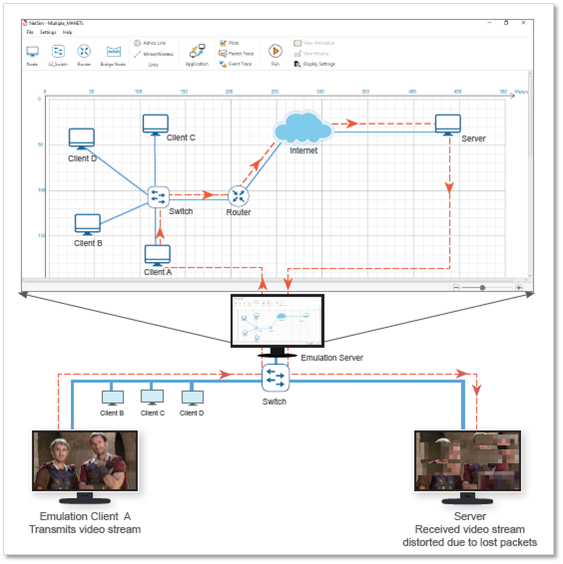

Emulation: How Simulation interacts with the real world

_images/Figure-112.png

Figure-1: Simulator interacting with the real world
