NetSim Cyber: Model and Simulate Cyber Attack on Power Systems
Last updated: May, 2026
Modern electric power grids are no longer isolated physical systems. They are cyber-physical
infrastructures where power equipment, communication networks, and control software operate
together. While this convergence improves efficiency and automation, it also introduces
cybersecurity risks.
The threat is real and escalating
Power grids are now prime targets, surpassing other critical infrastructures in attack frequency.
Three incidents illustrate.
2015 · Ukraine
Ukrainian Power Grid Attack
The first confirmed cyber-induced blackout. Attackers remotely operated substations, cutting
power to over 200,000 consumers.
2022 · Ukraine
Industroyer2
Malware hard-coded for IEC-104 attempted physical destruction of substations during missile
strikes. A clear cyber-kinetic attack.
2023-24 · USA
Volt Typhoon
State-sponsored actors covertly infiltrated U.S. power grid networks for months using
legitimate admin tools, positioning for future disruption.
Why NetSim Cyber
Improving CPPS security requires a realistic testbed that can replicate power-system behavior under
malicious conditions.
The problem
Hardware testbed limitations
High cost and procurement complexity
Limited scalability, hard to replicate multi-substation scenarios
Safety risks when running malicious attack scenarios

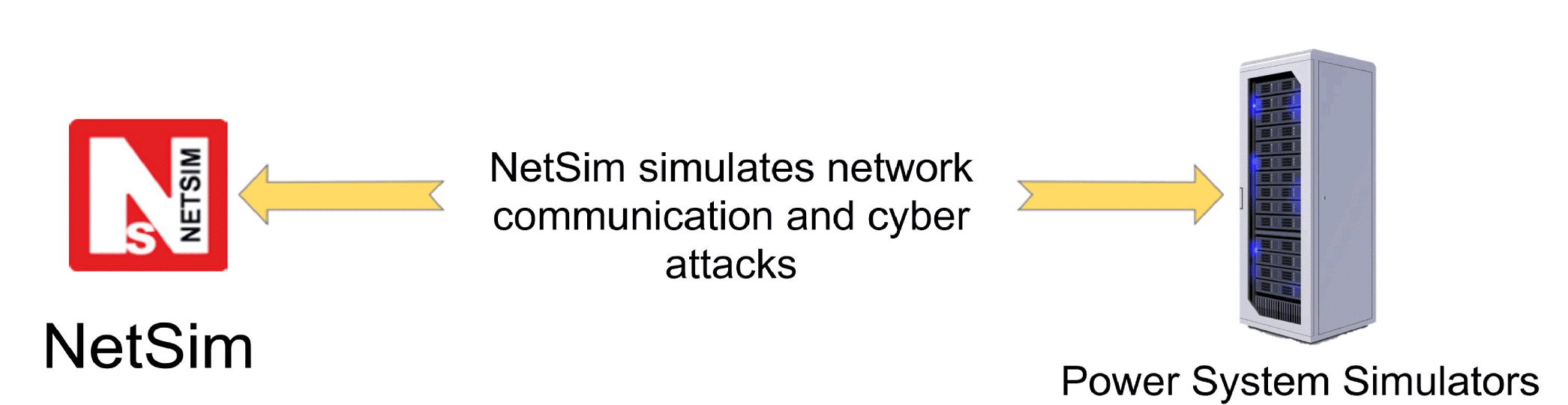

A complete CPPS testbed combines a power-system simulator (generators, power
electronics, transmission, distribution) with a network simulator that models the
communication network and its cyber behavior.
NetSim Cyber provides the network and attack-emulation layer
Safe, scalable, reconfigurable in software
Functions as a digital twin of the real power system
System architecture
NetSim Cyber connects protocol source simulators through a common Core that intercepts live
traffic, applies protocol-aware attacks, recalculates checksums, and delivers wire-valid modified
packets to destination analysis tools.
NetSim Cyber Core: end-to-end protocol workflow
System 1 · Source
Protocol simulators
Synchrophasor PMU, GOOSE/SV source, Modbus master or DNP3 master generate original
traffic on a controlled LAN.
System 2 · Core
NetSim Cyber Core
Intercepts traffic, applies protocol-aware attacks and recalculates checksums. Modified
packets remain indistinguishable on the wire.
System 3 · Destination
Analysis tools
PDC/WAMS, IED/relay, SCADA/HMI or utility control receive and validate the modified
traffic.
NetSim Cyber: network simulation and cyber attack layer
Protocol deep dive
Field-level rewrites, not generic packet fuzzing. Each protocol has attack modules that parse
structure, field semantics, and checksum requirements.
Synchrophasor
IEEE C37.118
The standard for synchrophasor data transmission in Wide Area Monitoring Systems (WAMS). Used
for real-time grid monitoring, state estimation, and protection. Supports 2005 (v1), 2011 (v2),
and 2024 profiles including the 64-phasor, 4-frequency-channel model.

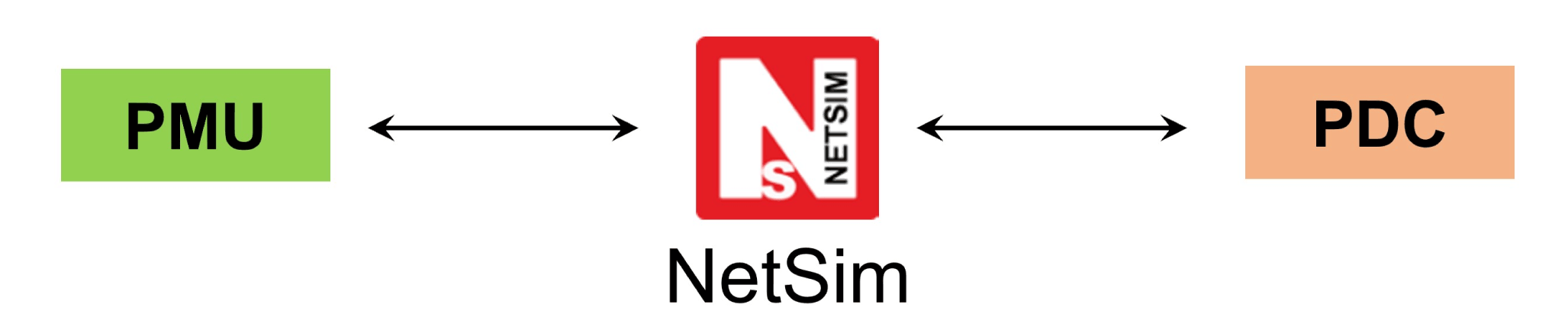

NetSim Cyber sits between PMU and PDC, intercepting and modifying synchrophasor
traffic

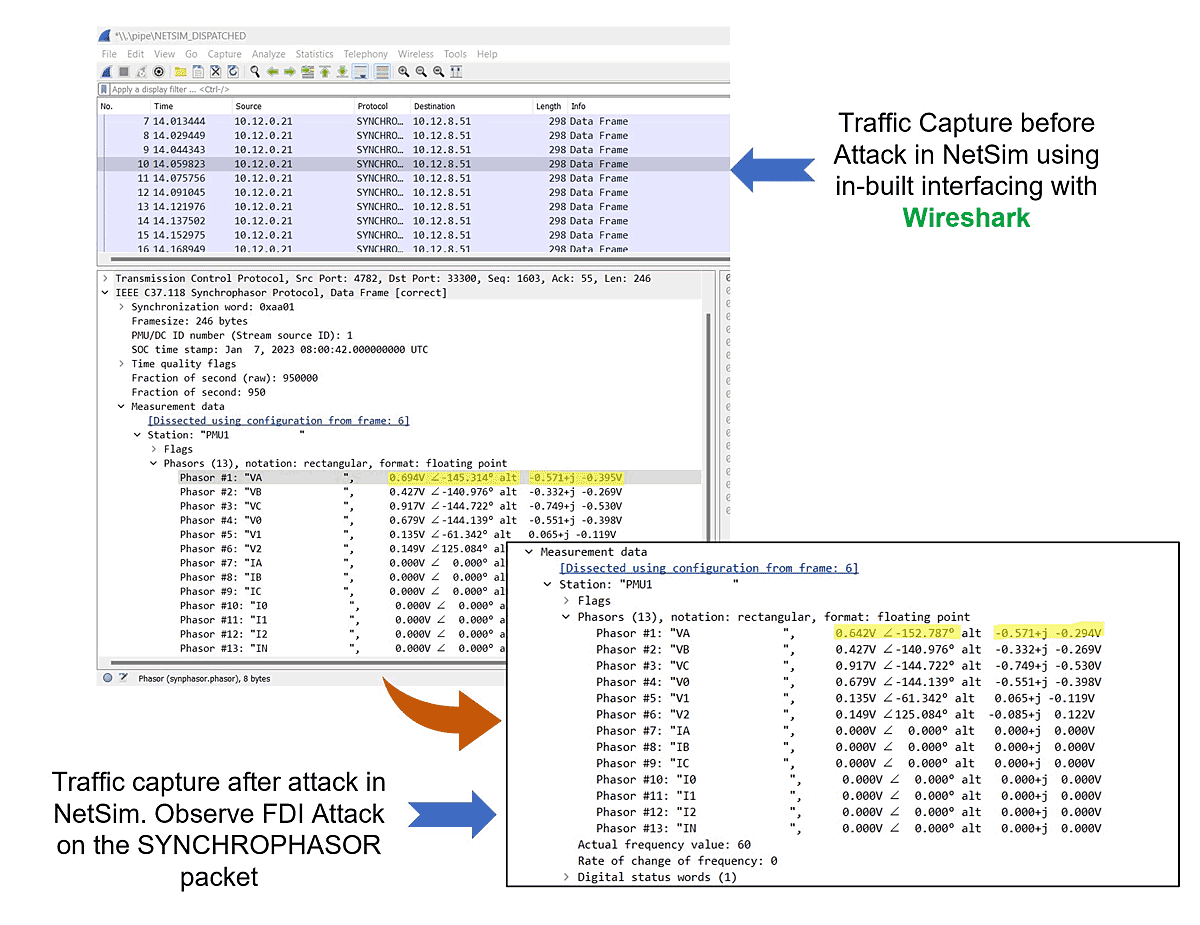

Attacks
Phasor magnitude inc/decrement
Pulse faults and ramp drift injection
Random jitter on phasor values
Manual phasor/freq/ROCOF override
FDI on frequency and ROCOF
SOC timestamp shift
Replay capture and playback
Technical details
Frame sync 0xAA, CRC-CCITT pre-mutation
Version-aware: 2005 (v1), 2011 (v2), 2024
Polar and rectangular phasors, int/float
64 phasors, 4 freq channels (2024 model)
Physics-driven freq, voltage, load-flow angle
SOC/FRACSEC fields fully modifiable
IEC 61850
GOOSE / Sampled Values
Generic Object-Oriented Substation Events (GOOSE) and Sampled Values (SV) carry substation
communication in IEC 61850 networks. Attacks on these protocols can trigger false breaker trips,
corrupt protection relay logic, and disrupt substation automation.
Attacks
stNum override
sqNum override
timeAllowedToLive override
Simulation flag toggle
Dataset tampering (bool/float/uint)
SV smpCnt and smpSynch override
SV payload: Va/Vb/Vc/Vn, Ia-In
Technical details
BER tag parsing, allData field discovery
Handles stNum, sqNum, TAL simulation
SV ASDU: smpCnt, smpSynch, seqData
80 or 256 samp/period, sine and constant
Breaker trip and process-bus integrity test
Simulation flag distinguishes test vs live traffic
Industrial control
Modbus TCP
A common protocol in industrial control systems and SCADA environments. Register tampering and
coil manipulation can cause incorrect actuator commands and corrupt historian data without
raising alarms.
Attacks
Register increment/decrement
Register ramp drift and jitter
Fixed-value false data injection
Manual register override by address
Coil/discrete bit: ON / OFF / FLIP
Technical details
MBAP header parse and response rebuild
Targets FC01, FC02, FC03, FC04
Simulator: FC01-FC06, FC15, FC16
Fields: func code, byte count, registers
Master polls all 4 types, logs all responses
IEEE 1815
DNP3
The standard protocol for utility-to-substation communication in North America. Unauthorized
control commands and replay attacks can trigger remote switching operations and corrupt SCADA
historian records.
Attacks
FDI: analog/binary inputs, counters
Replay via interceptor path
Unauthorized direct/select-operate
Link-status recon and integrity polling
Time skew writes
Enable/disable unsolicited responses
Cold/warm restart, DoS flooding
Technical details
Start 0x05 0x64, header and block CRC
Transport seg, obj groups, CROB
Point DB: binary, analog, counter I/O
Interceptor: outstation-master traffic
Class poll, replay, ctrl paths via GUI
Supports both solicited and unsolicited modes
Telecontrol
IEC 60870-5-104
A telecontrol protocol used for communication between control centers and substations over
TCP/IP networks, widely used in electric power transmission and distribution systems for
supervisory control and data acquisition. IEC-104 supports telemetry, telecontrol, event
reporting, and status monitoring between a master station and a controlled station.
Attacks
Telemetry value modification
Status indication manipulation
Replay of valid messages
Delay of telecontrol messages
Packet drop
Time-tag manipulation
Technical details
IEC 60870-5-101 app layer over TCP/IP
Port TCP 2404, master to controlled station
Single/double-point information, measured values
Commands, integrated totals, time-tagged events
Use case: transmission/distribution SCADA, telecontrol security
Integration with power-system simulators
NetSim Cyber interfaces with real-time power-system simulators and electrical platforms.
Feature highlights
What NetSim Cyber does that hardware testbeds and generic security tools do not.
Focus
Post-exploitation
Evaluates grid impact after a breach, not how it occurred. No pen-testing, no malware
deployment. Controlled lab environment only.
Method
Protocol-aware mutation
Field-level rewrites on Synchrophasor, GOOSE, Modbus, DNP3 and IEC-104. Not generic packet
fuzzing.
Fidelity
Wire-valid packets
CRCs and transport checksums recalculated post-mutation. Modified packets remain
indistinguishable on the wire.
Form factor
Software digital twin
Hardware testbeds are costly, inflexible, hard to scale. NetSim Cyber functions as a digital
twin: safe, scalable, zero hardware risk.
Integrations
Power-system tools
Direct interfaces with OPAL-RT, RTDS, HYPERSIM, PSCAD, MATLAB/Simulink, Typhoon HIL, OpenPMU
and openPDC.
Outcome
Proactive resilience
Validate detection and countermeasures before attacks occur on live infrastructure.
Who is NetSim Cyber for
Teams working on the cyber-physical security of electric power systems.
Utilities and grid operators
Power-system utilities and national grid operators evaluating attack
impact on production infrastructure.
SCADA and substation engineers
Protection, SCADA and substation automation engineers validating
relay logic and process-bus integrity.
Cybersecurity teams
Teams validating protocol-aware detection and countermeasures on
power-system traffic.
CPPS researchers
Cyber-physical lab integrators and researchers building software
digital twins of power systems.
Defence and critical infrastructure
Defence and critical-infrastructure agencies preparing for
cyber-kinetic attack scenarios.
Academic institutions
Universities and training organisations teaching CPPS security with
reproducible experiments.
